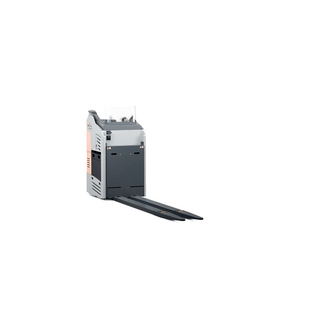

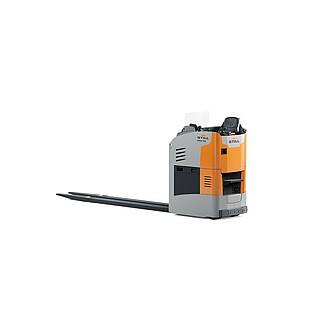

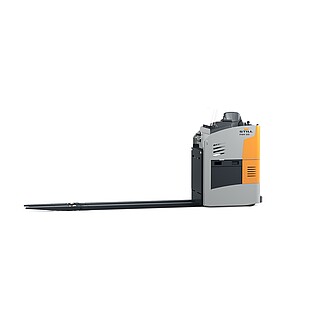

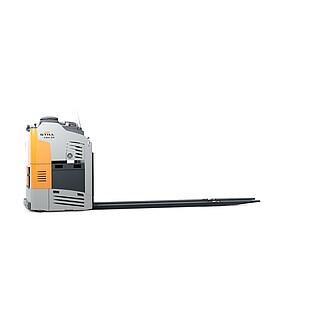

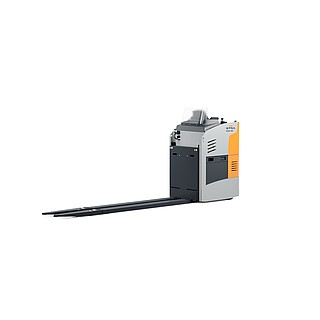

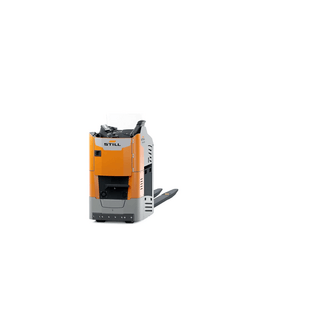

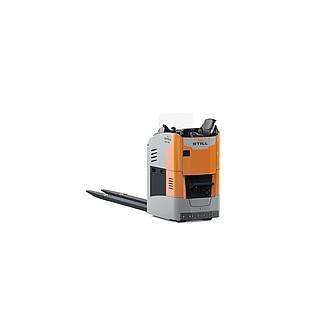

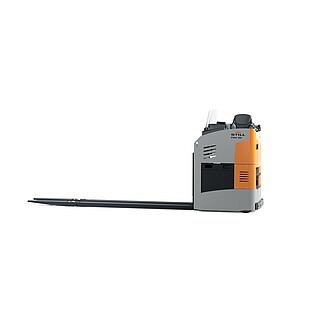

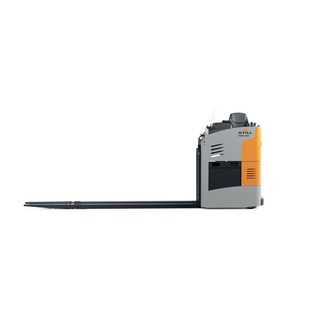

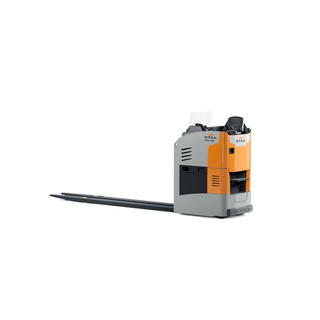

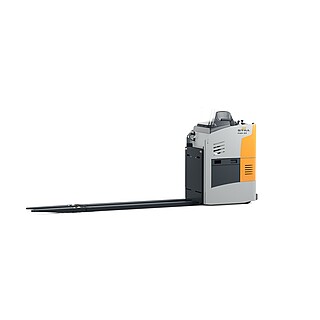

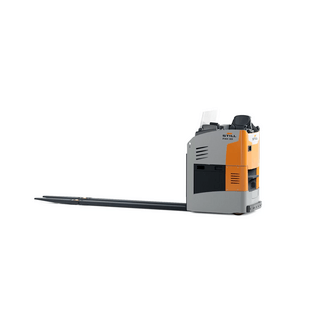

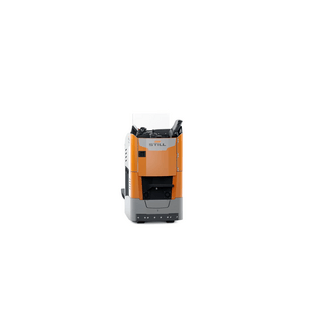

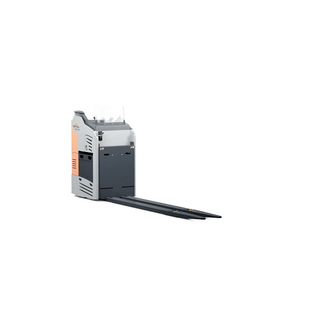

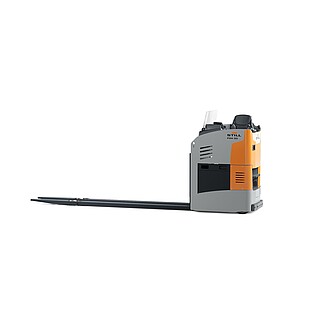

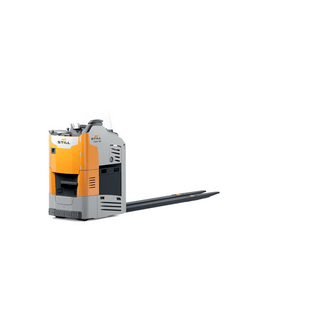

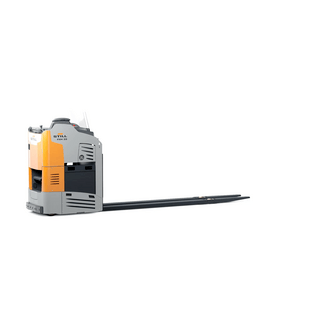

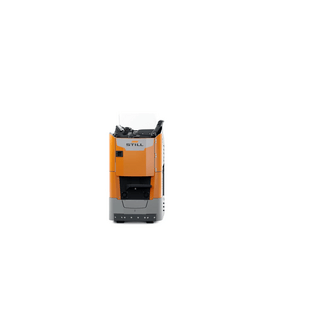

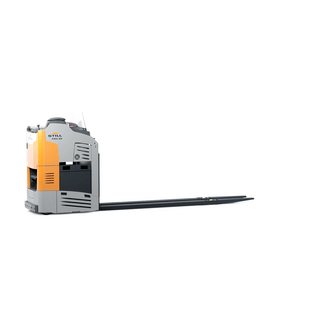

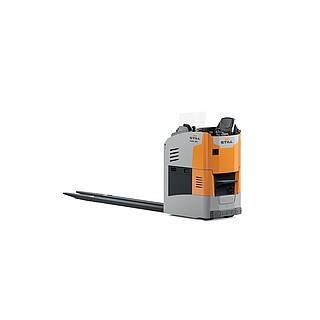

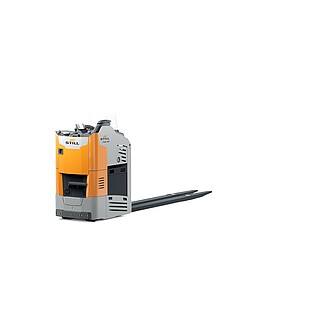

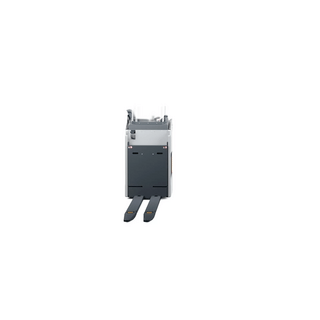

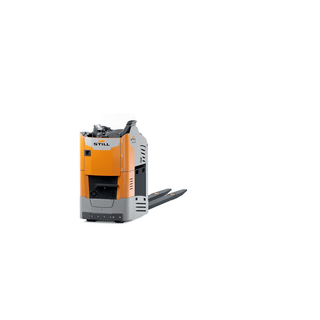

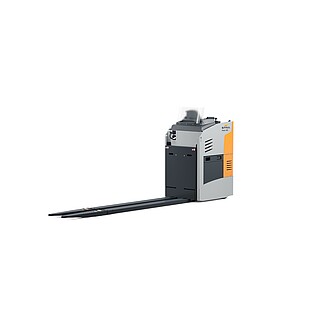

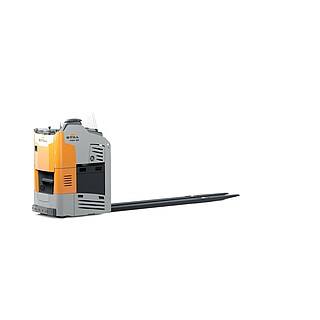

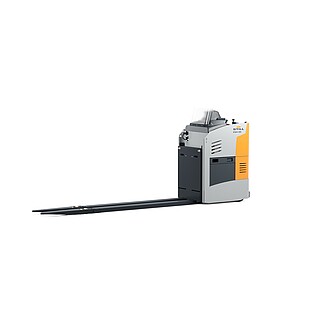

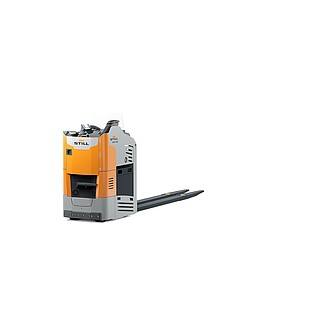

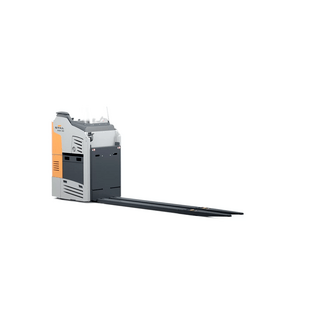

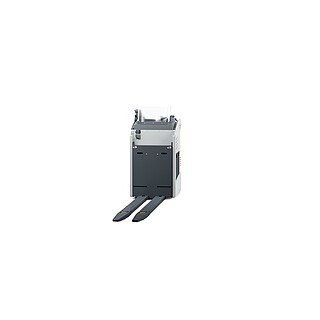

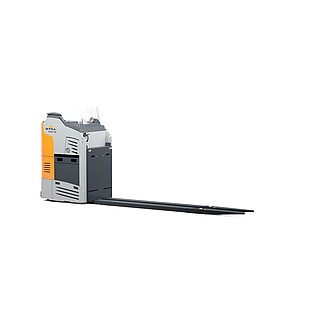

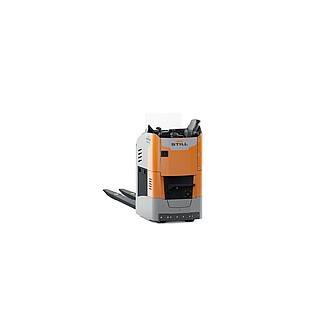

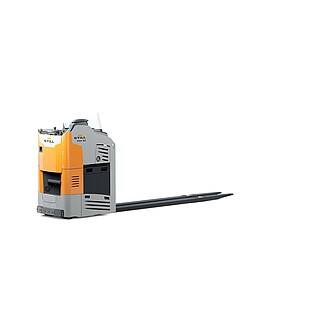

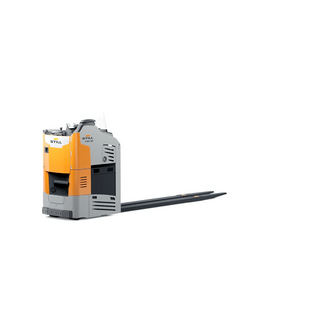

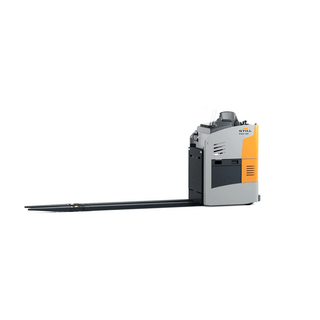

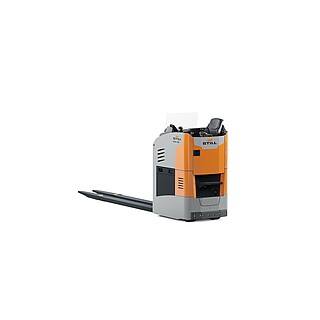

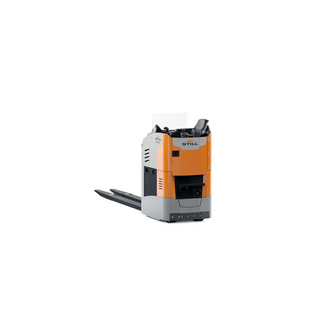

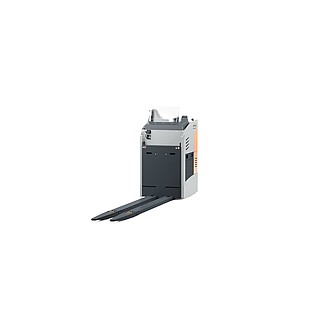

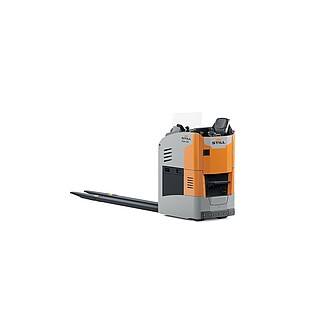

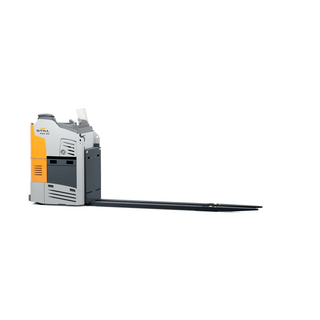

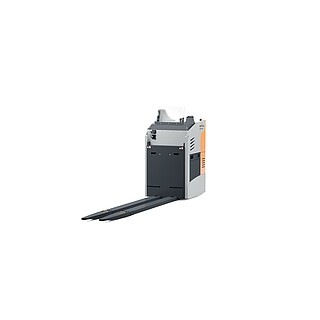

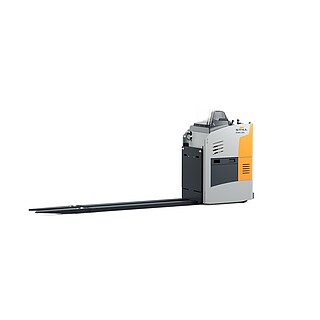

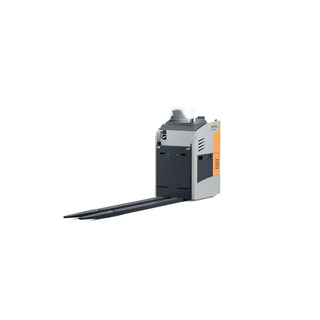

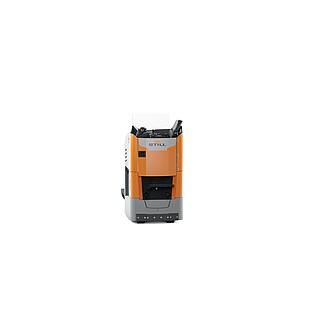

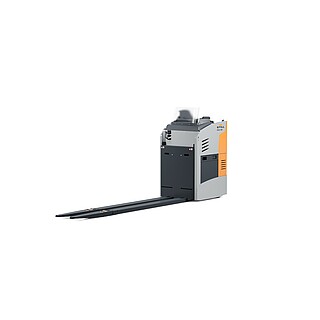

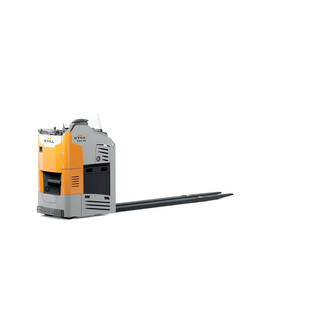

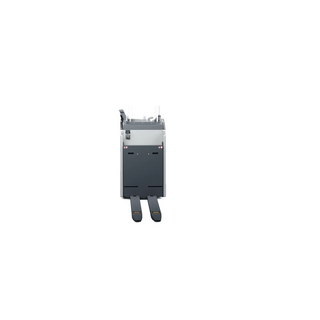

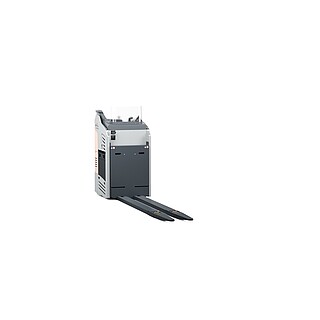

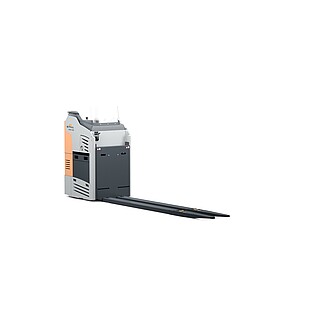

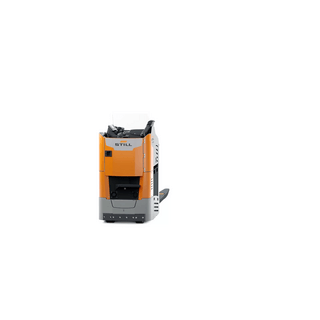

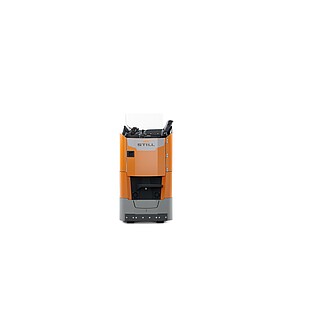

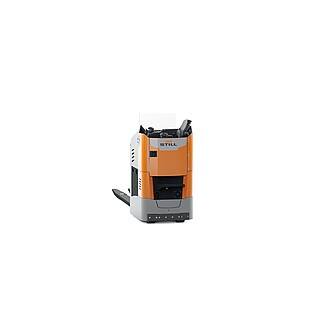

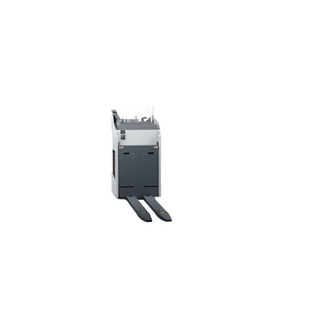

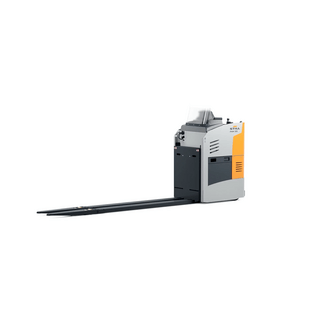

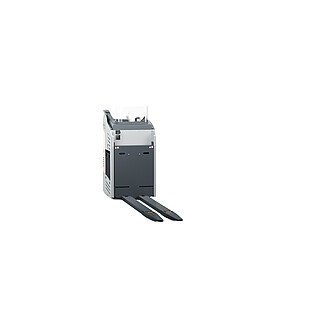

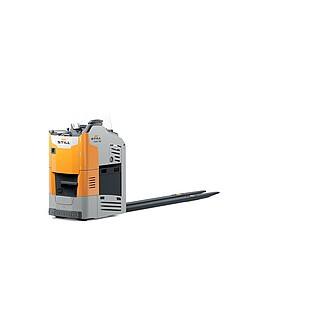

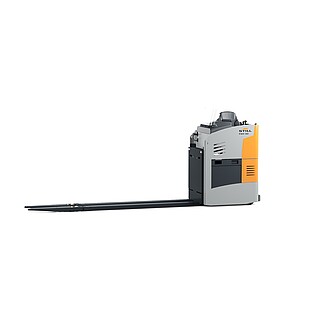

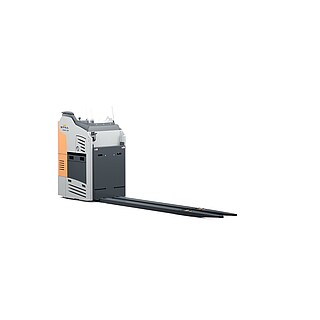

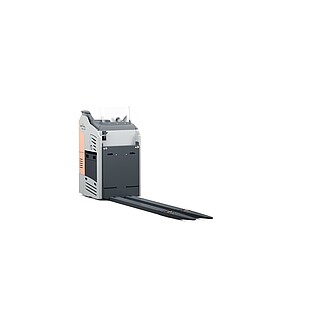

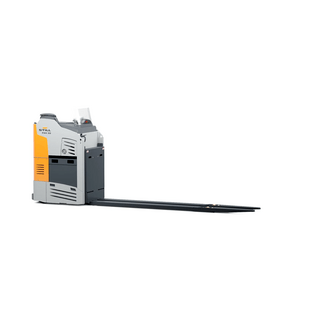

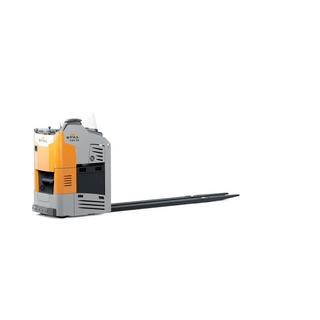

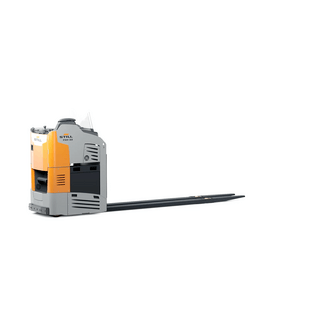

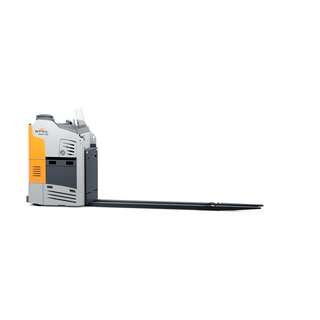

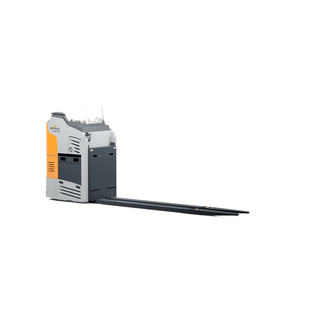

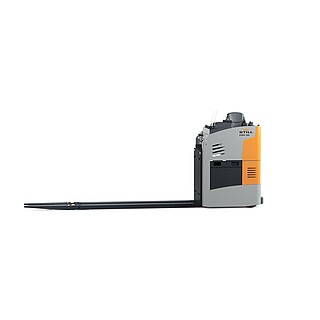

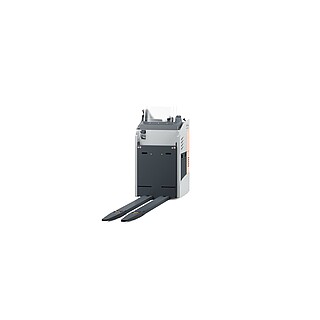

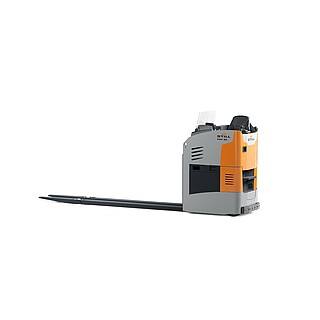

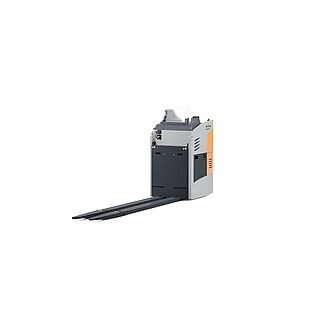

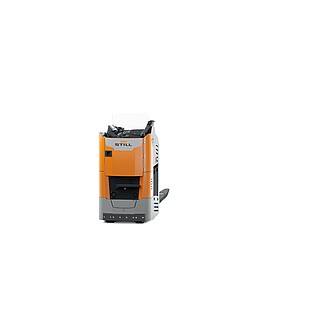

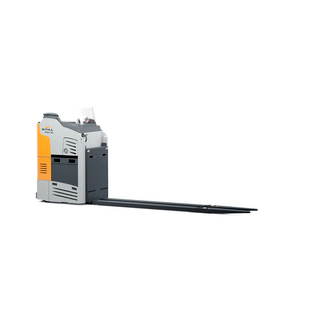

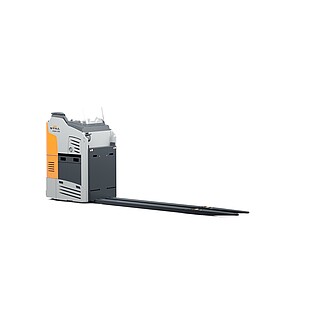

Rider seated low lift pallet truck FXH 33

Top Performance in Record Time

  • Effective goods handling due to simultaneous transport of three pallets (3.3 t)
  • Fast transport of goods even over long distances thanks to travel speeds of up to 20 km/h
  • Optimal driver’s seat ergonomics and visibility of the fork tips thanks to high seat position
  • Precise, safe lifting and lowering of load due to proportional valve technology
NEW
Non-binding offer
RENTAL
Non-binding rental offer
USED
Our used trucks offer

Zahtevaj FXH 33

Izpolnite spodnji obrazec. V najkrajšem možnem času vam bomo odgovorili.

Naziv*
This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

The FXH 33 is the transport locomotive among the STILL low lift pallet trucks. Other models quickly reach their limits in retail and industry – the powerful FXH 33, on the other hand, is completely in its element. Its rounded forks can lift up to three pallets at the same time. Owing to its lifting capacity of up to 3.3 tonnes, which is enormous for its class, the compact powerhouse can handle even the most heavy-duty applications. Coupled with a driving speed of up to 20 km/h, the FXH 33 achieves an outstanding handling capacity. Its exceptional performance is due to its two powerful rotary current drive motors, each with 6.5 kW. The battery is also a strong performer: with up to 930 Ah, it effortlessly masters any heavy-duty operations. In order to make the operator’s work as pleasant as possible, the FXH 33 has a range of impressive features.

The brand-new colour display provides information about the battery status, driving speed, kilometres travelled, date and time. The display brightness automatically adjusts to the environment. While the joystick and the electric steering help with precise manoeuvring, the high seat position ensures a clear view of the goods transport. The cushioned driver’s seat and the height-adjustable foot plate guarantee an ergonomically optimised driving experience, regardless of the operator’s stature. Various systems – including Curve Speed Control, shunting and STILL Safety Light – also ensure maximum safety in the workplace.


The FXH 33 in detail

Simply easy

  • Easy to manoeuvre even in the most confined spaces due to compact chassis contour
  • Exceptional handling performance thanks to optimal visibility of the fork tips
  • Rounded fork tips enable fast and secure pallet lifting
  • Precise goods handling thanks to fully electric 360° steering
  • Intuitive operation of all functions via joystick

Simply safe

  • Ergonomic and safe access via generously sized steps and handhold
  • Automatic speed adjustment to the steering angle keeps goods
  • securely in place when cornering
  • Sensitive braking along with energy recovery owing to the regenerative braking system
  • Optimal safety in the event of a collision thanks to optional impact protection integrated at the drive end
  • Visibility for other warehouse employees thanks to blue point of light projected by optional STILL Safety Light / STILL Safety Light 4Plus

Simply connected

  • Clear overview of all relevant information via optional STILL neXXt fleet tool
  • Shock detection, access protection against unauthorised third parties and cost optimisation with the optional STILL FleetManager 4.x
  • Optimal goods flow thanks to the optional MMS preparation for straightforward integration into the material flow management system
  • Easy service analysis and parametrisation of settings via CAN bus interface

Simply powerful

  • Effective goods handling at up to 20 km/h and a lifting capacity of up to 3,300 kg
  • Powerful movement thanks to two reliable AC drive motors (48 V)
  • Sufficient energy for multi-shift operation thanks to high battery capacity of up to 930 Ah
  • Short charge cycles through optional lithium-ion technology
  • Precise, safe lifting and lowering using proportional valve technology

Simply flexible

  • Superior comfort thanks to cushioned driver’s seat, generous leg room and a range of storage options
  • Ergonomic conditions for all body sizes thanks to optional electric height-adjustable foot plate
  • Suitable for any warehouse thanks to optional cold-store cabin and wind shield on three sides
  • Always ready for use with fast, lateral battery change (optional)

Mediathek

{{ filteredVideos.length }} Videos

Downloads

The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.


Model Overview

Model
Maximum capacity (kg)
Maximum lift height (mm)
Travel speed (km/h)
Battery voltage (V)
FXH 33 / Li-ion 3300 115 20.0 48
